Xhorse VVDI PROG V5.2.7 Auto Programmer VVDI PROG Auto Diangnostic-tool Program
Shipping: International shipping available
Shipping time: Standar(10-20 business days), Rush(5-10 business days)
Discount: Get 2% discount on orders of USD $100.00,Get 3% discount on orders of USD $200.00
Handling time: Ships within 3 business days after receiving cleared payment
Returns: 7 days money back guaratee,buyer pays return shipping
Product Detail
Customer Reviews
Shipping Guide
Delivery Time
Product Tags

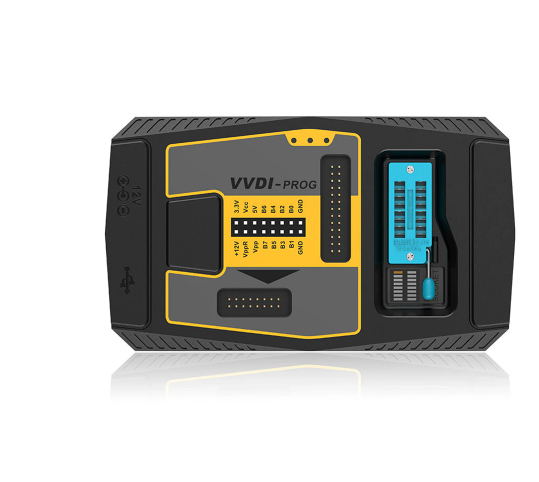

Xhorse VVDI Prog Programmer
Features:
1. Built-in update software: Make VVDI Prog firmware update timely.
V5.0.8 VVDI PROG Software Download password:123456 (2021-10-27)
2. Reserve ports: For future updates.
3. Self-test function: Check if the machine works well or not.
4. Smart operation mode: possible causes of error will be listed
5. High-speed USB communication interface: Make software automatically connect.
6. Power supply: Through a USB cable, the software will automatically prompt if the external USB power supply is needed
7. Multi-Language: English, Arabic, Cezch, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Chinese
8. Newly Add Bosch ECU Adapter functions, Support Reading ISN from BMW ECU N20 N55 B38 B48, and need to buy VVDI Prog Bosch ECU Adapter.
Good News:

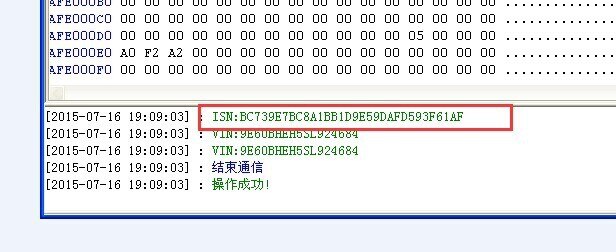

Once you buy VVDI Prog programmer, you can get free BMW ISN read function and NEC, MPC, Infineon etc chip continuously update service. If it supports to read BMW ISN,after click read, it will show the ISN automatically like follow pic shows.
Xhorse VVDI PROG Main Function:
1) Support R&W lots of chips, include MC9S08 series, MC68HC(9)12series
2) MC9S12series, V850series, H8Xseries, R8Cseries, PCF79XXseries
3) Most eeprom chips etc.
4) Support chip data verify, checkblank function
5) Support data file compare function
6) Support R&W BMW N20, N55 ECU(show ISN directly)
7) Stable R&W MC9S12XE series chips(5M48H/1N35H/2M53J/3M25J etc.)
8) Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
9) Lots of connection diagram
Test on Different Computer Feedback:
Did a few tests today and this is what I found out.
It seems that VVDI prog reading speed is dependent on the processor speed of the computer.
CAS3 0L15Y flash read times
Centrino processor @ 1.6ghz Windows XP = 12mins
Core2 Duo processort @ 2.5ghz Windows 7 32 bit = 5 mins
i7 @ 4.4ghz Windows 7 64 bit = 2mins 30 seconds.
Other programmers do not seem to be affected by processor speed at all.
I also would of thought this was a fairly easy question to answer without me doing all the testing.
How to Update Xhorse VVDI Prog Software and Firmware?
Software Update
You can get from our "Download" page or in description,we always list out download link.
Get in VVDI prog software: Click the "Upgrade" button enter the upgrade interface, show as following.
Firmware:
Firmware keeps v2.0. No need to update firmware.
VVDI PROG latest software version V5.0.7 Upgrade information (2021-09-24):
* This version DON't need update
firmware
+ Modify LOCK_BCM2-1(ADAPTER),
LOCK_BCM2-1(WELD),
LOCK_BCM2-2(ADAPTER),
LOCK_BCM2-2(WELD),
options in
<4-IMMOBILIZER>->
Optimize the process
VVDI-Prog Supported Type List:
Memory:
ATMEL, CATALYST, EXEL, FAIRCHILD, INTEL, MICROCHIP, MITSUBISHI, ST, TOSHIBA, XICOR
MCU:
RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC(9)08, MOTOROLA MC68HC(9)12, MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F
VVDI Prog Supported Model List:
ECU List:
BMW E Series, BMW F Series, BOMBARDIER, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT, OTHER
IMMOBILIZER List:
AUDI, BENZ, BMW, BUCIK, CHEVROLET, STEC, CHRYSLER, FIAT, FORD, GREATWALL, INFINITI, LANDROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, VOLKSWAGEN, ZHONGHUA.
DASHBOARD List:
BUICK, CHANGAN, CHERY, CHEVROLET, DONGFENG, FAW, FORD, GEELY, GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, VOLOVO, ZHONGHUA, ZOTYE
REMOTE List:
BMW E Series, BMW F Series
VVDI PROG Supported chip list:
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32bytes |
| M35080 | R | Can erase the first 32bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
MCU
| Manufactures | Types | Support |
| MOTOROLA | MC9S12XEP | R(Can automatically determine D-FLASH/EEE space) |
| MC9S12XA | R | |
| MC9S12XB | R | |
| MC9S12XD | R | |
| MC9S12XDT | R | |
| MC9S12XDP | R | |
| MC9S12XDQ | R | |
| MC9S12DG | R | |
| MC9S12DT | R | |
| MC9S12P | R | |
| MC9S12H | R | |
| MC9S12HY | £ | |
| MC9S12HA | £ | |
| MC9S12HZ | £ | |
| MC9S12XHZ | £ | |
| MC9S12B | £ | |
| MC9S12GC | £ | |
| MC9S12XS | £ | |
| MC9S12K | £ | |
| MC9S12Q | £ | |
| MC9S12C | £ | |
| MC9S12P | £ | |
| MC9HC(9)08 | £ | |
| ATMEL | ATTINY | £ |
| ATMEGEA | £ | |
| NEC | uPD70F | £ |
| ST | TMS370 | £ |
ECU
| Manufactures | Types | Support |
| VAG | MED17.1-TC1796 | £ |
| MED17.11-TC1796 | £ | |
| VAG MEG17.5-TC1766 | £ | |
| VAG MED17.5.1-TC1796 | £ | |
| VAG MED17.5.2-TC1767 | £ | |
| VAG MED17.5.5-TC1766 | £ | |
| VAG MED17.5.20-TC1766 | £ | |
| VAG EDC17 CP14/CP20-TC1796 | £ | |
| VAG EDC17 CP04-TC1796 | £ | |
| VAG EDC17 C46-TC1767 | £ | |
| VAG EDC17 CP24-TC1796 | £ | |
| VAG EDC17 CP44-TC1797 | £ | |
| VAG EDC17 U01-TC1766 | £ | |
| VAG EDC17 U05-TC1796 | £ | |
| VAG/Porsche Siemens Continental SDI 3- TC1796 |
£ | |
| BMW | MEVD172(N55) | R |
| MEVD172P(N20) | R | |
| MEVD172G(N55) | R | |
| MEVD172S(N55) | R | |
| MEVD1724(N20) | R | |
| MEVD1725(N13) | R | |
| MEVD1726(N55) | R | |
| MEVD1729(N20) | R | |
| MEVD1728(N63/S63) | R |
Note: R means the type is supported, £ means the type will be supported in the future.
Detailed components instruction and display:
1) 16pin locking socket
Function: Read EEPROM chips
Use method: Follow the image direction when insert the DIP chip (PIN1 as yellow point show as the picture); SOP chip need soldering on 16Pin adapter first, then insert the chip follow the image direction:
2) MC9S12 Reflash Cable V1
Function: Read & Write MC9S08, MC9S12 series chips, current version is V1
Use method: Soldering the line on pin of the chip before reading & write
Notes:
(1) Please check all connection lines, ensure a correct and reliable connection
(2) Please Don't lengthen CLK and GND-C line, maybe cause read data failed
3) MCU Reflash Cable V1
Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips, current version is V1
Use method: Soldering the line on pin of the chip before reading & writing
Notes:
(1) Please check all connection lines, ensure a correct and reliable connection
(2) Please Don't lengthen CLK and GND-C line, maybe cause read data failed
4) ECU Reflash cable
Function: Read & Write engine ECU
Use method: Connect the ECU and R&W
Notes:
Please check all connection lines, ensure a correct and reliable connection
VVDI Prog Programmer Specifications:
| option | Specification | ||
| Working temperature | -20 ~ 70 ℃ ( – 4 ~ 158 ℉ ) | ||
| Storage temperature | -40 ~ 85 ℃ ( -40 ~ 185 ℉ ) | ||
| USB interface | USB 2.0 | ||
| Power adapter | 12V / 2A | ||
| Consumption | 1W | ||
| Device dimensions | L | W | H |
| 146 mm | 85 mm | 28 mm | |
| Package dimensions | L | W | H |
| 220 mm | 155 mm | 80 mm | |
| Net weight | 180g | ||
| Gross weight | 530g | ||

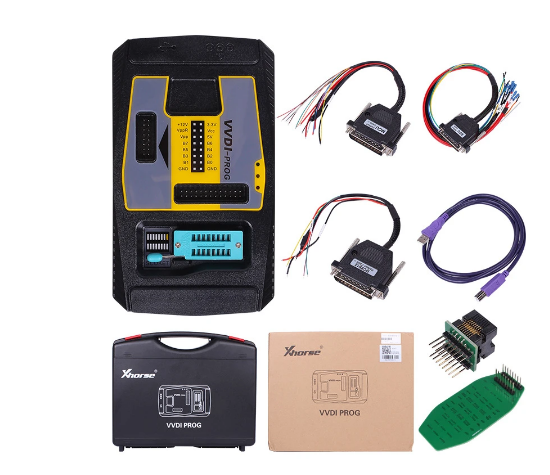

Package List:
1* VVDI PROG multiplexer
1* Square USB cable
1* SOP16 test socket
1* 16pin converter (Support SOP/SOT/SSOP)
1* MCU reflash cable
1* ECU reflash cable
1* MC9S12 reflash cable (Used to program MC9S12 series chip)
